THERMOID Air/Multipurpose Hoses

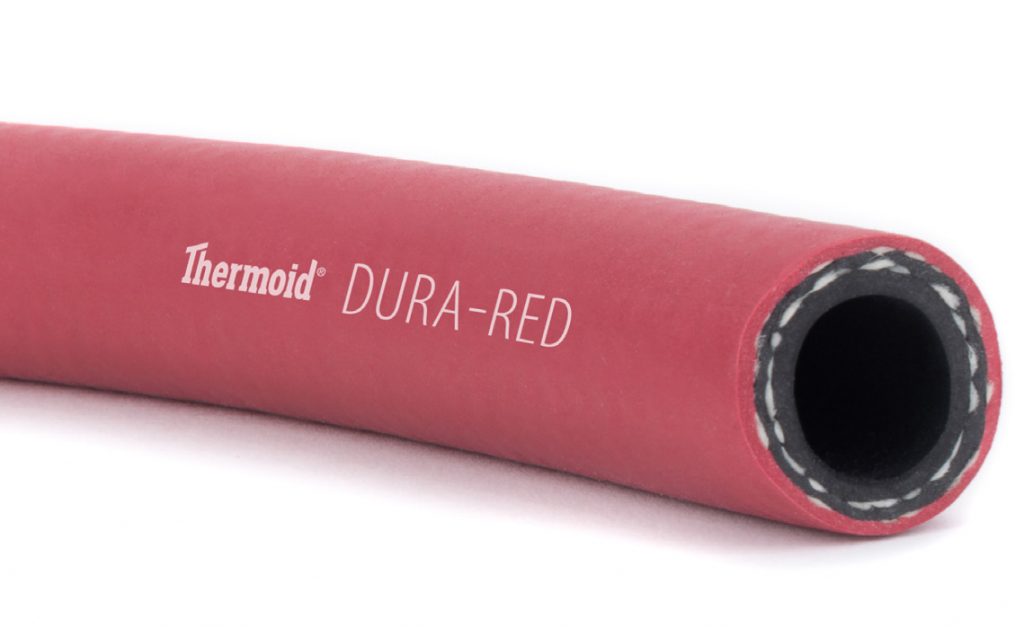

Representative image photo see BRANDING for product stamp.

DURA-RED™

Dura-Red™ is a premium non-conductive multipurpose hose that withstands oil mist, air, water and mild chemicals. This hose meets a minimum of 1,000,000 ohms per inch resistance when tested with a 1,000-volt D.C. megger. It features 4-spiral, 300 PSI construction ideal to handle harsh applications.

This product is not for use with steam or fuels.

Submit a Product Inquiry

RESISTANCE

Heat

Water

BRANDING: Thermoid Dura-Red™ Non-conductive
Size PSI WP Made In USA Month/Day/Year Time Stamp

COVER COLOR: Red


PRODUCT LITERATURE

View Dura-Red™ in Thermoid Hose Products Catalog


CONSTRUCTION

CONSTRUCTION:

Non-Conductive

  • Safety Assurance

TUBE:

EPDM, ARPM – Class C

  • High Temperature Resistant

COVER:

EPDM, ARPM – Class C

  • Water Resistant
  • Heat Resistance
  • Ozone Resistant

REINFORCEMENT:

4-Spiral Polyester Yarn

  • Provides a Working Pressure to 300 psi
  • Easier to Route Assemblies
  • Easier to Coil and Handle
  • Less Susceptible to Premature Failure than Braided Hose if Subjected to Torque
  • More Flexible than Braid Reinforced Hose

TEMPERATURE RANGE:

-40°F to +200°F, -40°C to +93°C

  • Still Flexible Even at Extreme Temperatures

PACKAGING:

Reels

  • 700 ft. Reels
  • Over 80% One Piece Reels
  • Less Scrap
  • Most Footage per Reel vs. Competition

PRESSURELESS CURE SYSTEM:

  • Minimal Cast (Natural Curvature of the Hose)

AIR MANDREL MANUFACTURING PROCESS:

  • No Internal Contamination of the Inside Diameter Due to the Lubricant
  • Eliminates the Need for Customers to Flush the Hose
